PRODUCTS
|
Material
Handling and Weighing Scales
Finding
a way to get your products manufactured and packaged efficiently
takes a solid effort from all levels of production to distribution.
Streamlining material handling and packaging processes can reduce
lead times, making your operation a top competitor in the supply
chain industry. We have the products and solutions to increase your
operating speed and help drive your products to market quicker.
With automated
filling solutions, in-motion
scales, checkweighers,
floor scales, and other advanced systems,
our products can reduce production time and enhance product quality.
Optimizing inventory management is easily done with Rice
Lake’s Tracer® solutions. From indicators
to printers,
our goal is to help you take control of your material handling and
packaging process and become more efficient.
|
|
INLINE
BALL TRANSFER SCALE
One-section
inline weighing station provides unlimited weighing and sorting
capabilities. The standard serial RS232 communications port
allows for throughput of variable package weight and size
and for automatic computer data entry to UPS’s "Worldwide"
shipping program (user supplied) or your personal computer.
Capacity: 100 lb to 300 lbs. Platform size: 24" W x 30"
L x 30" H (height is adjustable). Package speed is operator
controlled.
Standard
box sizes: 9" x 9" to 20" W x 24" L x
14" H. Power Requirement: 110 VAC, 50/60 Hz. Complete
with TI-500 Digital Indicator pre-programmed at our factory
for a TURN KEY installation. Ship Weight 350 lbs. Warranty
12 months.
Item#
..... DESCRIPTION
TZ-300-MST Scale Base 30" x 24" with Stand
and Ball Transfer Cover, with Digital Indicator
|
|
|
INLINE ROLLER
TRANSFER SCALE
One-section
Inline Roller Transfer Weighing Station provides unlimited
weighing and sorting capabilities. The standard serial RS232
communications port allows for throughput of variable package
weight and size and for automatic computer data entry to
UPS’s "Worldship" shipping program (user
supplied) or your personal computer. Capacity: 100 lb to
300 lbs. Platform size: 24" W x 24" L or 30"
W x 30" L. Package speed is operator controlled.
Standard
box sizes: 9" x 9" to 20" W x 24" L
x 14" H. Power Requirement: 110 VAC, 50/60 Hz. Complete
with TI-500 Digital Indicator pre-programmed at our factory
for a TURN KEY installation. Ship Weight 135 lbs. Warranty
12 months.
TZ-300-R1
Scale Base 24" x 24" with Stand and Roller-
Transfer Top and Digital Indicator
TZ-300-R2 Scale Base 30" x 30" with Stand
and Roller-
Transfer Top and Digital Indicator
|
|
|

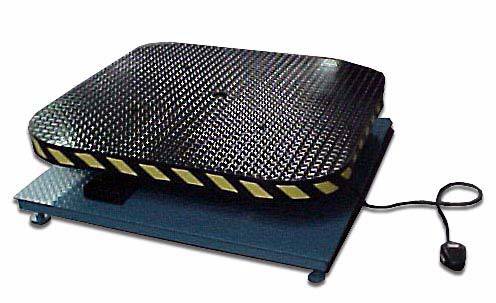

PALLET
WRAPPER AND SCALE SYSTEM
This
Pallet Wrapper Turn Table and Electronic Scale are the practical
and proven way to shrink wrap and weigh a shipping skid all
at one time. From its rugged scale base to its sensitive,
electronic display, this system is built to withstand tough,
industrial environments. The convenient on/off floor foot
peddle allows the operator complete control over the turn
table and twohanded control over the shrink wrap material.
A 3/4 hp DC motor drives the turn table. Complete with TI-500E
digital indicator.
Size:
48" x 48". Height of turntable off the floor with
scale: 18.0". Weighing modes: lbs, kg. Power source:
120 VAC 60 Hz 20 amps. RS232 interface standard. Shipping
Weight 840 lbs. All systems assembled and pre-calibrated at
our factory using test weights that have been certified by
the Dept of Weights and Measures prior to shipment for a TURNKEY
set upon installation.
Item#....Description
H190 Turn Table and Scale Base Combination, 4000 lbs
x 1.0 lbs
|
|
|
PALLET
WEIGHER - "LITE WEIGHT"
This
lightweight multipurpose pallet weigher is portable and can
withstand any beating you can dish out. It is self-leveling
so no adjustment is needed on uneven floors. It is light weight,
can be easily moved, and is economical. Size 32" W x
44" L x 5" H. Standard RS232 interface. TI500-E
indicator. Shipping Weight 200 lbs. Warranty 2 years.
Item#...Description
T350-M
Pallet weigher scale 2000 lbs x 0.5 lbs
|
|
|
U
SHAPE PALLET JACK SCALE
The
Pallet Jack Scale is designed and built for strength, accuracy,
and durability. The tubular steel construction and load cell
configuration makes this scale able to withstand heavy end
loading and years of heavy, hard industrial use.
It
fits all small and large pallets, and all standard pallet
jack trucks. It can be easily moved to different locations,
and the leveling foot assembly guarantees accuracy and repeatability.
Complete with TI300-E digital indicator. Size: 48" x
48" x 3". Power source: 110 VAC 60 Hz. Shipping
Weight 335 lb. Warranty 1 year.
Item#....Description
L410 U-Shape Pallet Jack Scale 5000 lbs x 1.0 lbs
|
|
|
THREE-SIDED
BUMPER GUARD
The
C-300 three-sided bumper guard will protect your platform
scales from damage from forklifts, trucks, etc. Made of heavy
steel, it is built to withstand the most rugged environments.
Shipping Weight 150 lbs.
L300-12A 48" Bumper Guard with hardware
|
